Key concepts of code generation:

Target Machine and Assembly

Note: our target machine:

Note: our target assembly (where loc can be register, memory address, or immediate value):

E.g.

//TAC IR
x=y+z

//Assembly
LD R0, y
LD R1, z
ADD R0, R0, R1
ST x, R0

E.g.

//TAC IR
if (x<y) goto L;

//Assembly
LD R0, x
LD R1, y
SUB R0, R0, R1
BLTZ R0, L

Instruction Selection

First we convert our TAC to a DAG.

E.g.

//TAC IR
a = b+c
b = a-d
c = b+c
d = a-d

DAG

Then we need to generate assembly from the DAG. This is represented as 'tiling' the DAG (we only discuss tree-tiling, which assumes the DAG is a tree).

Register Allocation

The compiler is responsible for moving data between memory and registers. IR has unlimited variables, but hardware has limited registers. We need to assign variables to registers in an intelligent way using Register Allocation.

Linear Scan Register Allocation

Assign registers to variable based on liveness:

If you run out of registers:

Graph Coloring

This is slower than linear scan, but the result is better.

Basically, if you have 2 variables that are live at the same time, they cannot share a register.

Construct an undirected graph (Register Inference Graph):

Graph coloring assigns colors to nodes such that the nodes connected by an edge have different colors. A graph is k-colorable if it can be colored with k colors. E.g. a triangle is 3 colorable but not 2 colorable.

In our case, instead of using colors we use registers.

Graph coloring is NP-hard if there are >3 registers, but we can use heuristics to get a pretty good solution.

Chaitin's Algorithm:

  1. Pick a node t that has less than k neighbours
  2. Put t on stack and remove from RIG
  3. Repeat until only one node left - color it
  4. Pop and color one node from the stack, until the stack is empty

Machine Dependent Optimization

Exploit a specific machine's dependent properties. This is a critical step, but is messy, with different techniques for different machines.

Pipeline Scheduling

Many architectures pipeline instructions to increase effective speed. To allow for pipelining, we should avoid data dependencies:

The solution is to reorder instructions to increase performance. We can do this with a data dependency DAG. The optimal scheduling is another NP-hard problem, but these are 2 heuristics we can use: 1. Schedule instructions that can complete earlier. 2. Schedule instructions that have more dependents.

VLIW (very long instruction word)

VLIW supports multiple functional units for one instruction. This lets the compiler combine instructions to execute them in parallel.

Cache-Oriented Optimization

CPU cache is designed to be transparent to program and compiler, but we can still optimize for cache behavior.

The cache uses temporal (likely to read same object more than once) and spatial (nearby objects) locality. Most cache systems load recently used memory and nearby data into the cache automatically. The compiler can reorder code to try and take advantage of this.

E.g. loop reordering reorders for-loop data accessing to take advantage of spatial locality.

Aliasing Analysis

This is for when two expressions denote the same memory location (e.g. pointers, indexing into an array). Our goal is to statically identify alising relations between variables, which is good for common sub-expression elimination (with pointers) and constant propogation (with pointers).

Anderson-style pointer Analysis

This generates constraints for pointer instructions.

  1. y=&x => x ϵ pt(y)
  2. y=x => pt(y) ⊇ pt(x)
  3. y=*x => ∀m ϵ pt(x), pt(y) ⊇ pt(m)
  4. *y=x => ∀n ϵ pt(y), pt(n) ⊇ pt(x)

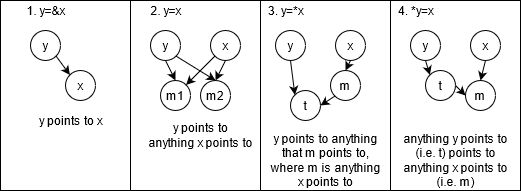

Anderson Pointer Instructions

e.g.

p=&a // ptr | pt()
q=&b // ----------
*p=q //  p  |  q
r=&c //  q  |  b
s=p  //  a  | b,c
t=*p //  r  |  c
*s=r //  s  |  a
     //  t  | b,c

Runtime Environment

Code generation needs to convert high-level structure into low-level physical machine operations.

The runtime environment is a set of data structures used at runtime to implement high-level structures. E.g. stack, heap, static data, virtual function tables.

When you run a process, it makes some syscalls (fork, execv), then reads the file's first 512 bytes into memory (does some sanity checks). Then you setup the new address space and jump to the code entry point.

Memory

Address Space

 -------------  47 bit
|    stack    |
|             |
|-------------|
|      |      |
|      v      |
|             |
|      ^      |
|      |      |
|-------------|
|     heap    |
|-------------|
|     .bss    |
|-------------|
|    .data    |
|-------------|
|     .txt    |
 -------------  0 bit (0x0)

Defining the sections:

Some notes:

Array Representation

C-style
-----------------------
| A[0] | ... | A[n-1] |
-----------------------

Multi-dimensional
-----------------------------------------
| A[0][0] | A[0][1] | A[1][0] | A[1][1] |
-----------------------------------------

Java
---------------------------
| n | A[0] | ... | A[n-1] |
---------------------------

Note that Java stores the length of the array at the start, where C doesn't.

Alignment

Variable addresses are self-aligned. This means the alignment depends on the size of the variable. E.g. int* is 8-bytes aligned, short is 2-bytes aligned.

The size of a struct is aligned to the widest scalar member. E.g. (on a 64-bit machine):

struct foo {
    char c; //1 byte + 7 bytes pad
    char *p; //8 bytes for an address
    int x; //4 bytes
    //4 bytes padding to align w/ 8-byte alignment
}; //sizeof foo is 24 bytes

You can reorder the struct to be char, int, char* to save space (total would be 16 bytes).

Another example:

struct foo2 {
    short s; //2 bytes
    char c; //1 byte
    //1 byte pad
}; //sizeof foo2 is 8 bytes

Functions

Function calls use stack frame and activation record. The stack contains function arguments, return address, caller frame address, and local variables. When you call a function, put a new stack frame on the stack. When you return, pop the current frame.

1: int foo(int x, int y) { // ---------------- <- stack top
2:     int z = x + y;      // | Frame main() |
3:     return z;           // |--------------|
4: }                       // |      1       | (first arg)
5: int main(void) {        // |--------------|
6:     foo(1,2);           // |      2       | (second arg)
7:     return 0;           // |--------------|
8: }                       // |    main:6    | (return)
                           // |--------------|
                           // |     rbp      |
                           // |--------------|
                           // |     z=3      | <- rbp (base of stack frame)
                           // |--------------|
                           // |              | <- rsp (top of stack)
                           // |     ...      |       (stack grows down)

Notes:

Closure in C

Not sure why this is relevant, but it was in my notes.

typedef struct closure {
    int i;
    int (*call)(struct closure *env);
} closure;

int call(closure *env) {
    env->i++;
    return env->i;
}

closure create() {
    closure c = {.i=0, .call=call};
    return c;
}

closure f1 = create();
printf("%d\n", f1.call(&f1));
printf("%d\n", f1.call(&f1));

Output:

1
2

Encoding Objects in OOP

Without methods, it is the same as struct aligning. Derived fields follow fields of base classes.

With member functions:

vtable (Virtual Function Table)

A vtable is an array of pointers to member function implementations. To invoke a function, statically determine the offset of function pointer in the vtable, then follow the pointer and invoke.

E.g.

vtable example

Runtime Memory Management and Garbage Collection

Problem: how to deal with memory?

Solution 1: Manual Memory Management

Developer handles memory with malloc/new and free/delete.

Pros:

Cons:

Solution 2: C++ unique_ptr (or Rust)

One memory object can obe reference by only one pointer at a time (the owner). This disallows aliasing (pointer copying) but allows object moving. Memory gets deallocated when the owner goes out of scope. However, this has it's limitations (even Rust allows direct pointer access with the unsafe keyword).

Solution 3: Reference Counting

Store a refcount tracking the number of references to an object. When it hits zero, deallocate it.

Pros:

Cons:

Garbage Collection (GC)

Reference counting is imprecise (due to reference cycles) - a better solution is reference tracking. An object that won't be used is garbage and can be freed.

An object is reachable iff:

A nonreachable object is garbage.

Mark-and-Sweep GC

Algorithm:

Problems:

Baker's Algorithm

Augment each object with a status: Marked, Enqueued, or Unknown.

Maintain doubly-linked lists of all objects (i.e. have 3 lists, one for each state).

Summary of Mark-And-Sweep

Pros:

Cons:

Linking

Algorithm:

Linking
